KPM200 Gateway

KPM200 series communication manager is an important part of the intelligent distribution automation system to complete the power distribution room microcomputer protection, automatic devices, monitoring and other intelligent device.
Overview Function Specifications Wiring Diagram Download
    KPM200 series communication management machine is an important part of the intelligent distribution automation system to complete the power distribution room microcomputer protection, automatic devices, monitoring and other intelligent devices and computer systems, power grid automation system to achieve the exchange of information between the far station information to the host Exchange and network exchange, thus forming a fully decentralized RTU communication system.






Function features

□Industrial grade Contex-A8 processor ,800MHz frequency
□512MB DDR3 SDRAM, 512Mflash
□Support 2/4-way high-speed 10 / 100M independent network interface
□Support 4/16-way RS485 serial communication interface
□Built-in real-time clock (RTC), temperature sensor and independent hardware encryption circuit to protect user IP
□Built-rich communication protocol library to support the electricity IEC60870-101 / 103/104 protocol, support ProfiNET, EtherNet, BACnet, SNPx and other communication protocols
□Built-in WEB server, support for remote development, configuration, commissioning and maintenance
□Achieve communication management, data gateway, data forwarding, protocol conversion, pre-processing and other functions
□CAN interface bidirectional optical isolation CAN2.0 interface standard
□Support all the way debug serial port, as well as WIFI wireless LAN / GPRS / 3G / 4G remote communications and other extensions
□Expandable 4-128G TF memory card
□Rugged metal shell and internal circuit "three defenses" treatment, especially for the harsh environment on site

Working power source Rated voltage AC   (9-48)V (PUMG2504)
  Power consumption < 3VA
Capacity index Network interface 2/4-way 10/100M Network interface, RJ45 interface

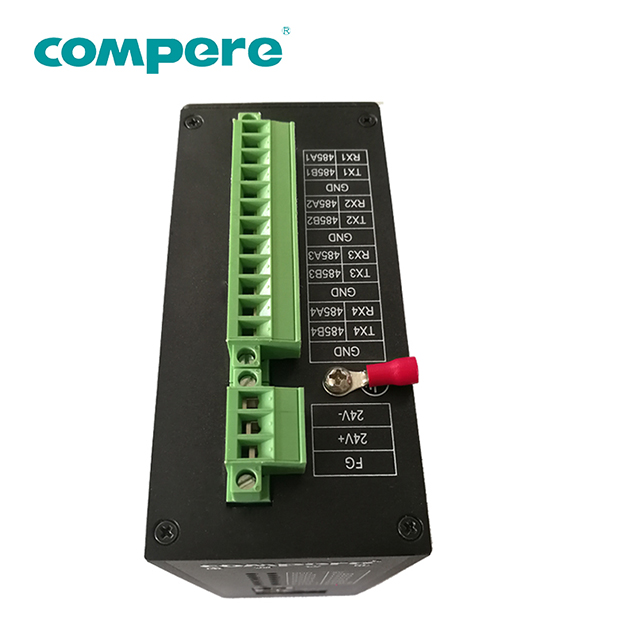

  Serial interface 4/16-way RS485 port
  Quantity of communication master station protocol <16pcs /pcs
  Serial port speed 300bps to 38.4kbps, Programmable settings
  Transmission method Full duplex or half duplex
Performance index Dual switch time <5S
  MTBF >5000小時/Hours

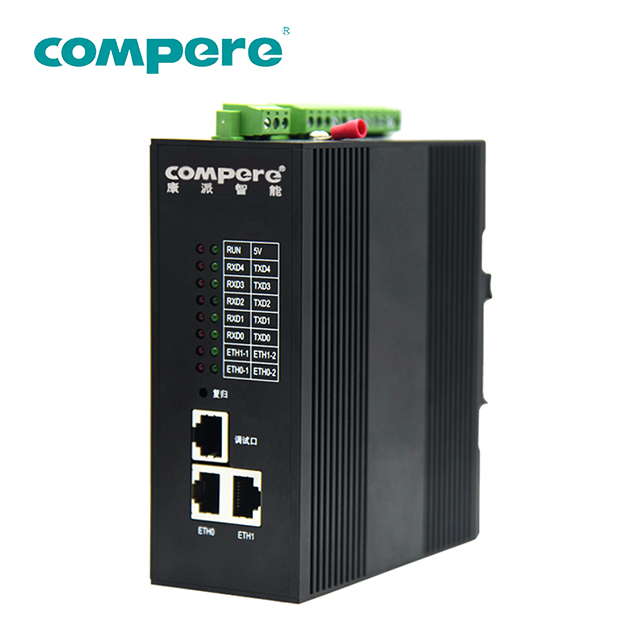

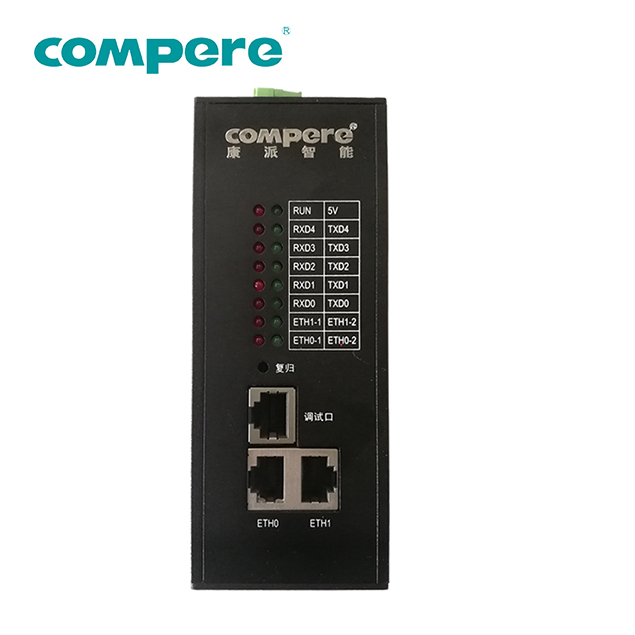

  Status Display Panel LED, reflecting the status of serial data transceiver
protocol support standard protocol IEC60870-5-101 / 103/104, Modbus, CDT, DNP3.0 and other 30 kinds of communication protocols
  special protocol Develop a special protocol according to the needs of the site
Configuration Tool Configuration Tool Web page settings, Chinese operation page
Anti-jamming performance Fast burst immunity GB/T 17626.4-2008, Level3
   Surge immunity GB/T 17626.5-2008, Level3
  Electrostatic immunity GB/T 17626.2-2008, Level3
Working environment Ambient temperature -25℃— +75℃
  Relative humidity 5%—95% No condensation
  Storage temperature -30℃—+75℃
Installation environment Installation method Guide/ Wall hanging installation
  Dimensions (W x H x D)/mm 55x138x118 (PUMG2504) 440x42.4x223(PUMG2516)
